Interfloor Lift
Carrying capacity

up to 6t

Lifting height

up to 9m

Platform dimensions

up to 6 * 3m

Platform Coverage Type

corrugated / smoothly painted sheet of metal

Basic equipment

platform, scissor mechanism, frame, hydraulic cylinders, control cabinet, control panel, hydraulic station, security system

Optional equipment

ramp, guard rail, material – stainless steel / galvanized

Warranty period

from 24 months (upon conclusion of a service contract – 36 months)

* The value of the parameters can vary, depending on the wishes of the customer.

Interfloor lift: description, characteristics and features

Interfloor hydraulic lift: design features

An interfloor elevator is a type of hydraulic elevator designed to transport goods to great heights. The lifting height of the device itself depends on the number of installed scissor-type mechanisms in the structure, the dimensions of the platform and easily increases at the request of the customer.

The device consists of a mechanical and electro-hydraulic part. The mechanical part includes a reinforced upper platform, the required number of scissor-type lifting mechanisms (depending on the lifting height) and the base. The electro-hydraulic part has the following main details: electric motor, pump, hydraulic cylinders, oil tank, control panel, control panel. The hydroelectric station can be placed either on the base (built-in) or outside the lift (remote).

An important difference of this equipment is the need to install guides provided that the height of the load is more than 2 meters. This helps to avoid play backlash during movement. The maximum number of possible guides reaches 4 units.

Features of installing a floor lift table

A lifting table of this type is installed without laborious preparatory work. For normal functioning, it will have to be placed in a pit with a depth of about 0.5-0.9 meters. This is enough to ensure that the design is securely fixed for the duration of the work. Installation is possible indoors and out: scissor mechanisms are resistant to climatic conditions.

The required voltage for the lift is 380V. According to the recommended fire-technical requirements, the marking of the power cable should be “VVG 5 * 1.5” / “VVG 5 * 2.5”.

Scope of interfloor lifts

The design feature of these lifting tables makes them convenient for loading and unloading at enterprises in the following areas:

  • Production;
  • Warehouses
  • Wholesale Companies;
  • Supermarkets and retail stores
  • Transport enterprises;
  • Service sector, etc.

Advantages of interfloor lifting tables for overall cargo DIASON:

  • all components for lifting tables are made only by well-known European manufacturers;
  • wide range of options for more efficient and safe operation;
  • hydroelectric station of own development and production
  • minimum hardware warranty is 24 months
  • all design and manufacturing processes take place at one enterprise – from the creation of the drawing to the delivery of equipment to the finished goods warehouse.

Price for DIASON Interfloor Lift

The exact cost of manufacturing each of the lifts is always individually formed. When pricing, the dimensions and carrying capacity of the product, as well as the wishes of the customer for optional equipment, are taken into account.

Order manufacturing and buy a floor lift

The technical specialists of our company are ready to design and manufacture an interfloor lifting table of any scale and complexity – from a typical to a unique exclusive solution.

To order or get advice, leave a request on the website or call one of these numbers.

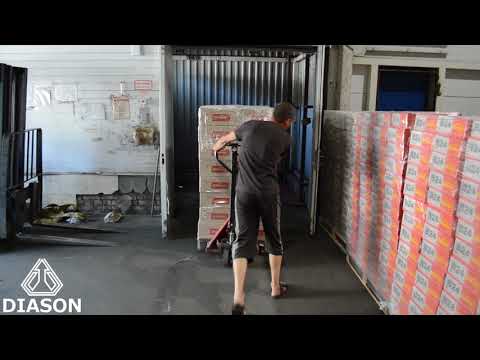

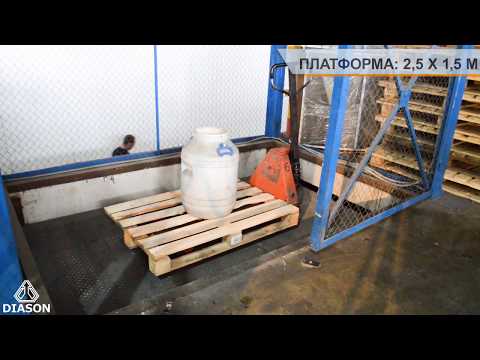

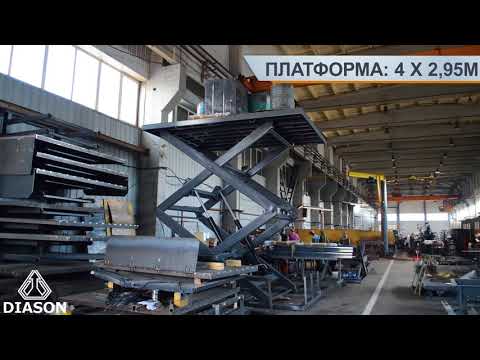

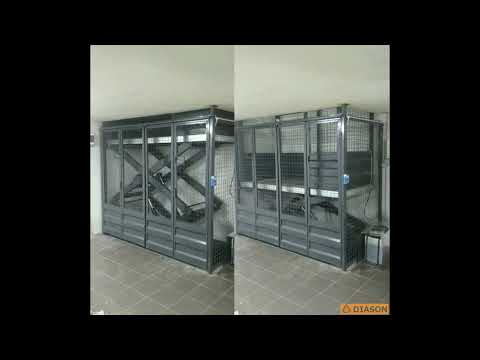

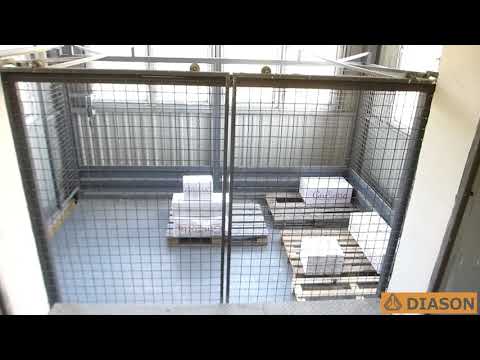

Examples of use of the goods
